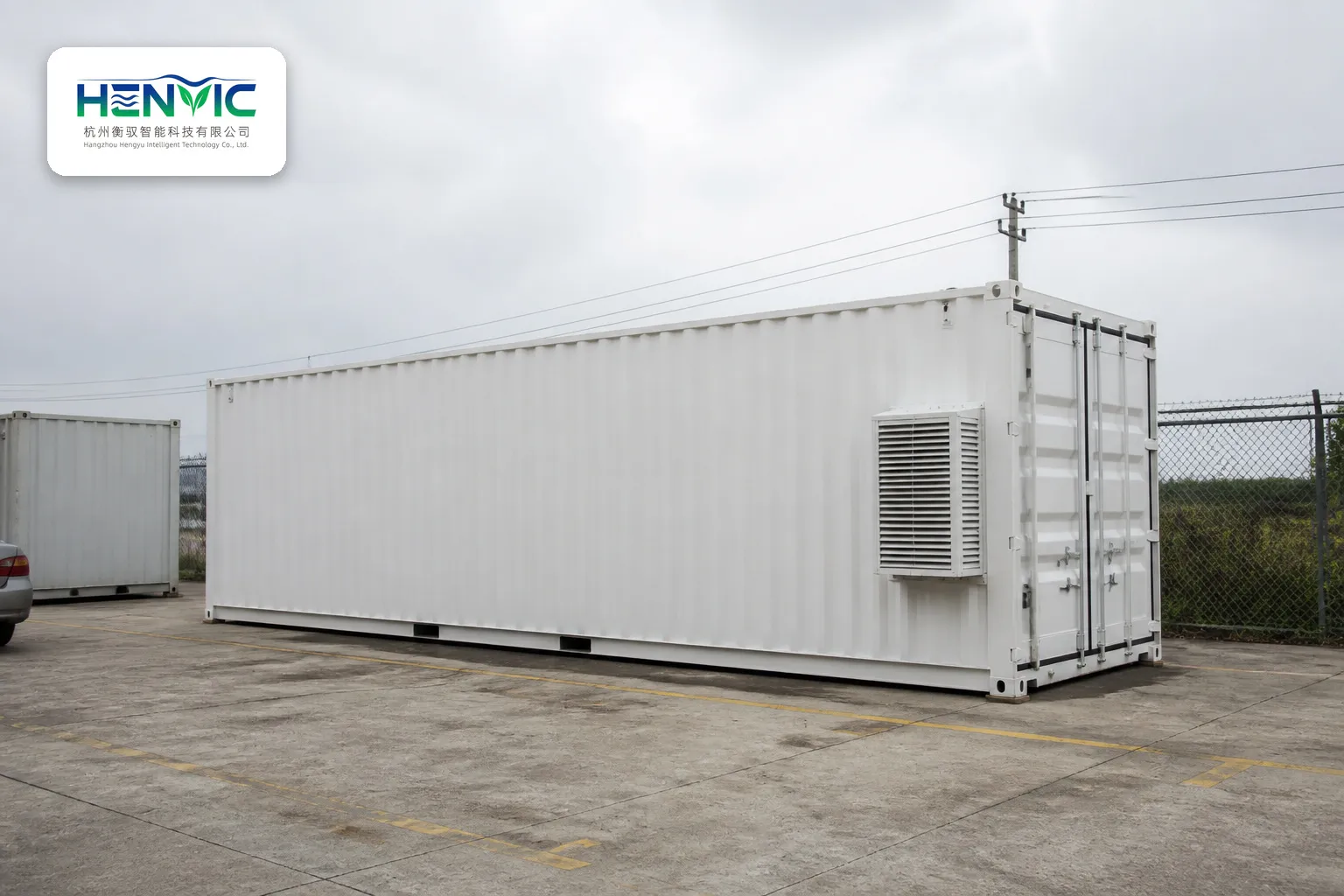

Shiitake Mushroom Cultivation Container Compact

1. Product Overview

Shiitake fruiting depends on cold-shock and light stimulation, and how evenly the substrate logs are lit directly determines cap colour and grading. This model combines programmable temperature-differential curves, directional inter-tier lighting and pull-out racks so that every log receives identical fruiting conditions.

2. Key Advantages

• Programmable cold-shock curves that promote even primordia induction

• Directional inter-tier lighting for uniform log exposure and consistent cap colour

• High-density pull-out racks giving a high load per unit area and easy batch handling

• Fresh-air and exhaust interlocks that clear the high CO2 peaks of peak fruiting

3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M4A
外形尺寸 / Dimensions	6058 × 2438 × 2896 mm（20 尺标准箱）  /  6058 x 2438 x 2896 mm (20 ft ISO container)
有效栽培面积 / Effective cultivation area	20–30 m²  /  20-30 m2
层架配置 / Rack configuration	3 层不锈钢出菇架，层距可调  /  3-tier stainless steel growing racks with adjustable shelf pitch
温度控制范围 / Temperature range	12-22 ℃ (±0.5 ℃)  /  12-22 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-92% RH
CO₂ 浓度 / CO₂ concentration	800-1500 ppm
光照 / Lighting	0-800 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	30–45 天（出菇期）  /  30-45 days for the fruiting stage
装机功率 / Installed power	6–9 kW  /  6-9 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.40 W/(m²·K)  /  <= 0.40 W/(m2.K)
控制系统 / Control system	PLC + 7 寸触摸屏，本地控制，预留远程接口  /  PLC with 7-inch touch panel; local control with remote-ready interface
主栽品种 / Primary species	香菇（Lentinula edodes）  /  Shiitake Mushroom (Lentinula edodes)



4. System Configuration

Standard configuration: Mesh-type pull-out log racks, inverter refrigeration unit, fogging humidifier with floor wet-film, dimmable LED bars, interlocked fresh-air and exhaust fans, ozone and UV disinfection interfaces, and an intelligent control cabinet.

Enclosure and integration: 6058 x 2438 x 2896 mm (20 ft ISO container); racks: 3-tier stainless steel growing racks with adjustable shelf pitch; control: PLC with 7-inch touch panel; local control with remote-ready interface.

5. Suitable Species

Primary species: Shiitake Mushroom (Lentinula edodes). Cultivation method: synthetic substrate logs (bag culture). We recommend a companion colouring (browning) area; logs that finish colouring before entering the container yield more uniform batches.

6. Application Scenarios

Year-round shiitake production bases, grow-rooms attached to substrate-log factories, and rural revitalisation industry projects. This is the Compact configuration; Small footprint for near-market deployment; ideal for pilot production and space-constrained sites.

7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 48-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 3 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
