モリーユ茸スマート栽培キャビン
I. Product Overview
Morel mushrooms (Morchella) are globally recognized as a prized culinary and medicinal fungus, with a honeycomb-like cap, a distinctive flavour and rich nutritional value, and strong market demand. Conventional morel cultivation depends on open fields and weather conditions, with yields constrained by temperature, humidity, pests and diseases. The Henvic smart morel cultivation cabin (HVC-40 series) is built around soil substrate bed cultivation and delivers stable year-round production covering mycelium culture, primordium formation and fruiting harvest within a sealed, fully controlled environment.
The cabin integrates a casing soil substrate bed, a micro-mist humidification system, a low-light / dark management module and a multi-parameter environmental control system. It automatically maintains the optimal combination of substrate temperature and moisture content, air temperature and humidity, CO₂ concentration and light, significantly improving fruiting rate and quality consistency. Factory-prefabricated and ready to run once lifted into place, the cabin is suited to high-end industrial mushroom production, research and breeding, and premium food supply chain bases.

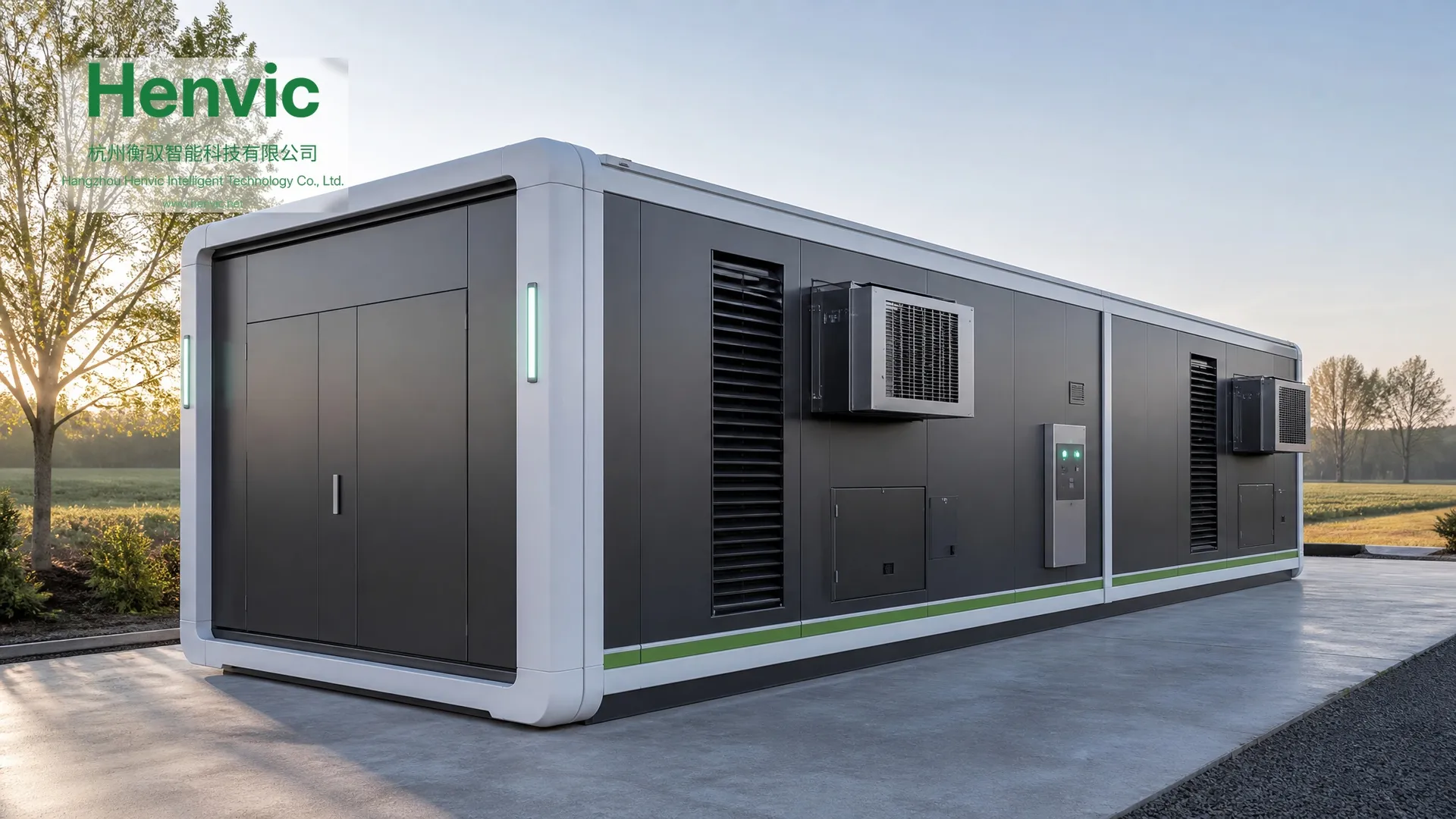

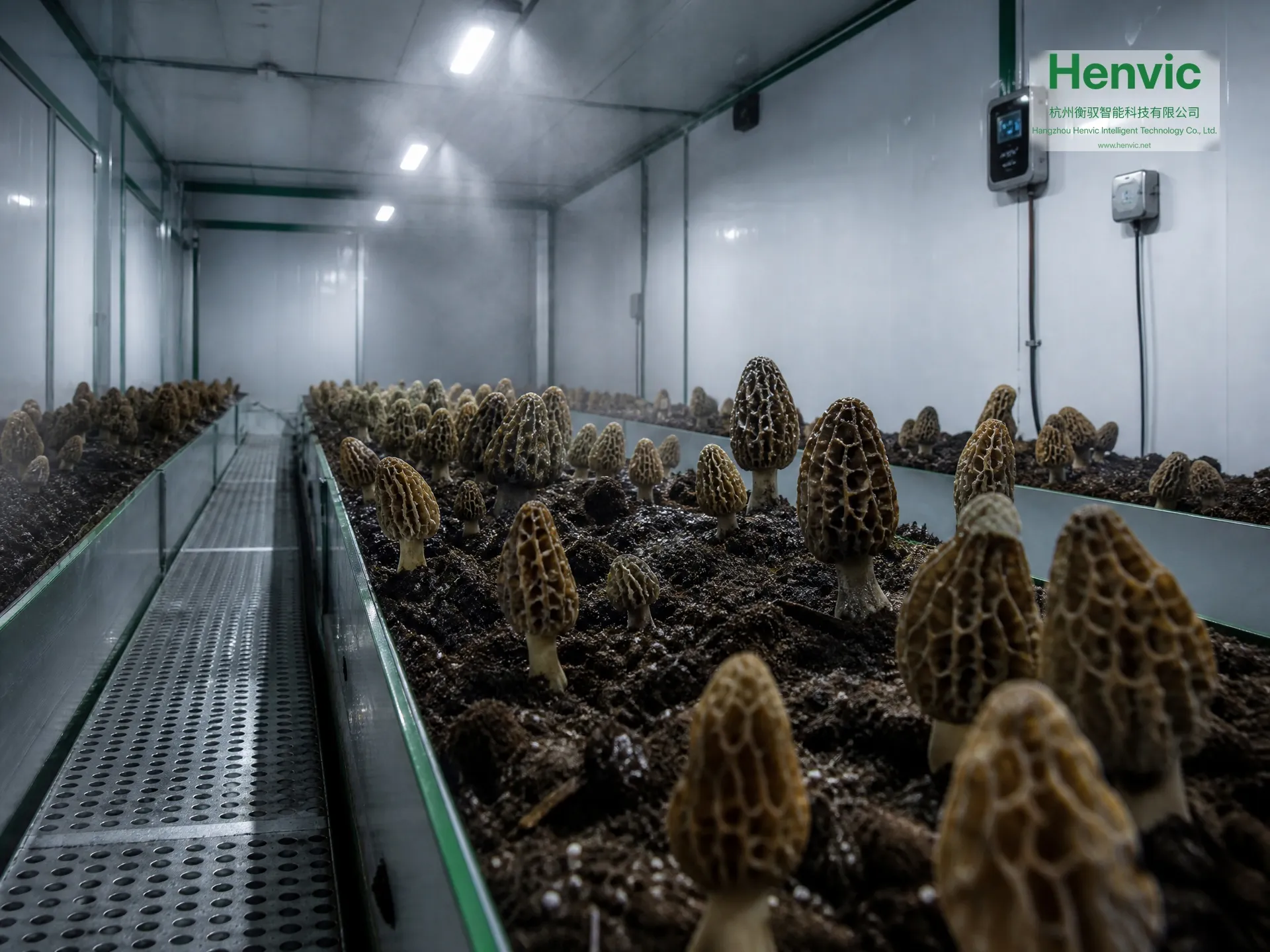

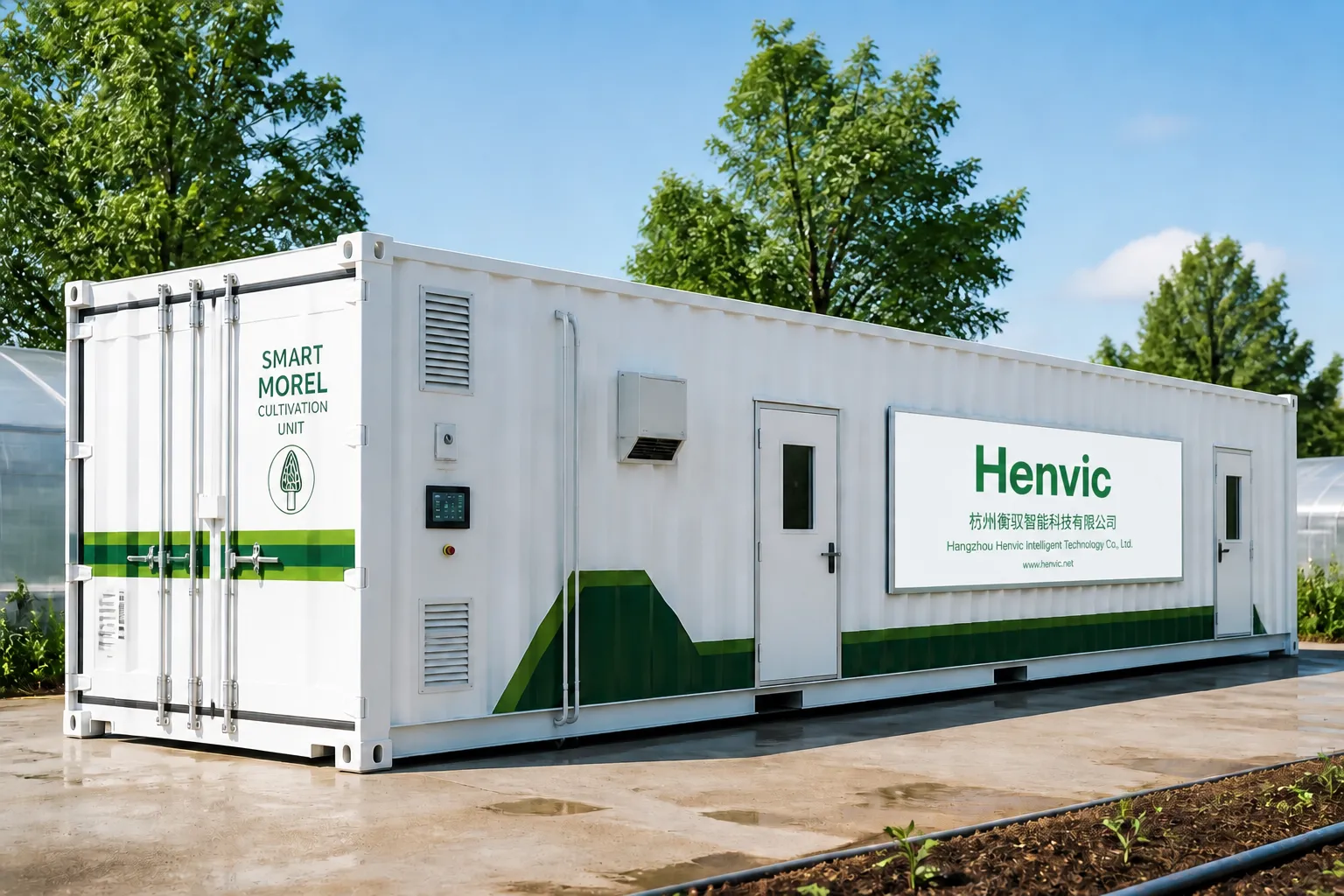

II. Product Photos
III. Core Features and Functions
- Casing soil substrate bed cultivation: scientifically proportioned soil substrate and nutrient formulation; the casing layer retains moisture and improves aeration to encourage rooting, providing the optimal growing medium for morels;
- Precise micro-environment regulation: multi-point sensors monitor substrate temperature and moisture content, air temperature and humidity, CO₂ and light in real time, automatically maintaining the optimal environmental curve for each growth stage;
- Intelligent humidification and moisture retention: a dual system combining micro-mist spraying with ultrasonic humidification stably maintains relative humidity above 85% during the fruiting period, preventing young mushrooms from drying and cracking;
- Low-light and dark management: automatically switches between dark and low-light modes according to the growth stage, preventing strong light from inhibiting mycelium and primordium development;
- Aseptic environment control: high-efficiency fresh-air filtration combined with scheduled ozone / UV disinfection significantly reduces the risk of contamination by competing fungi, pests and diseases;

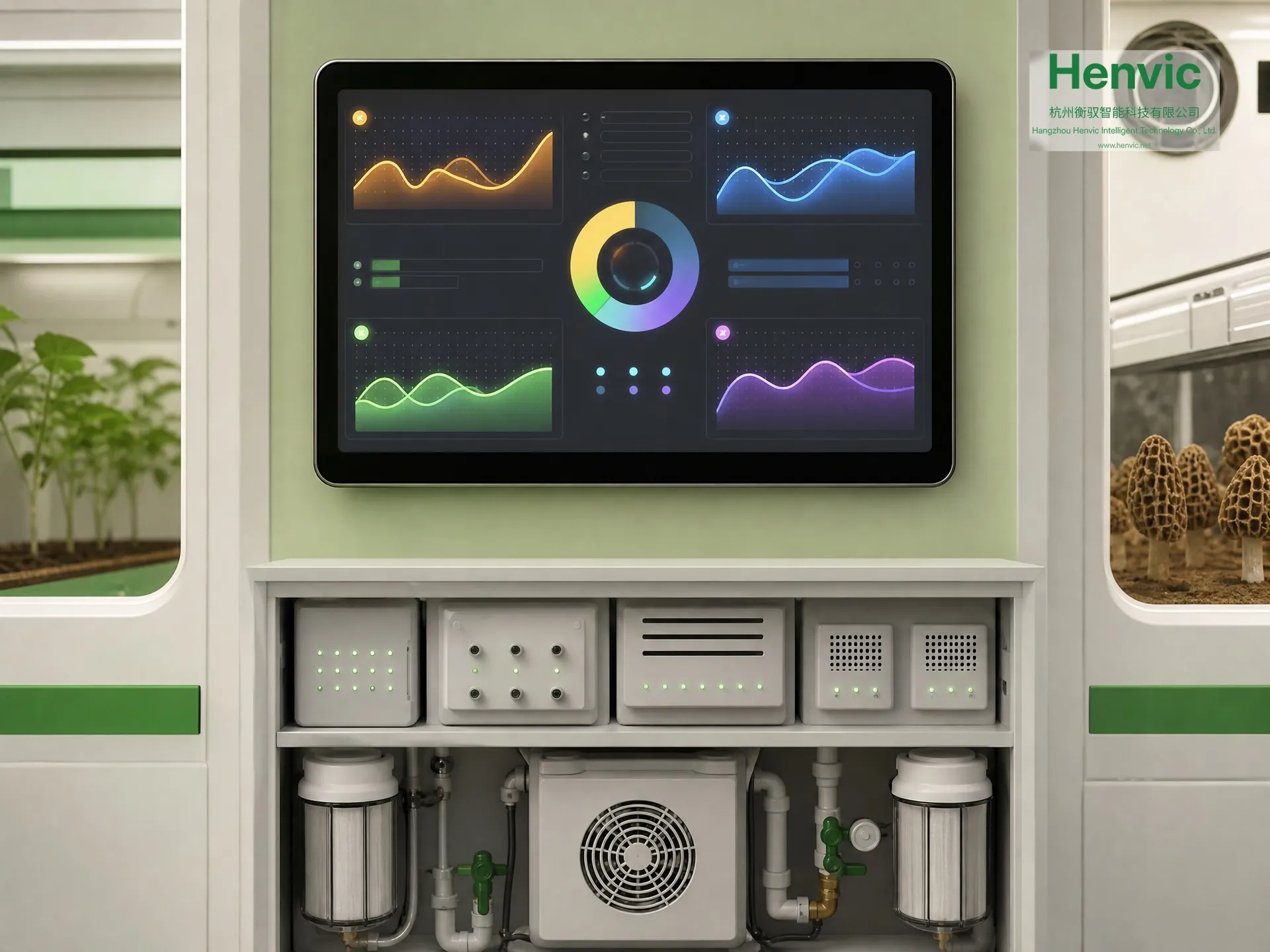

- Remote intelligent management: local control via a 10-inch touchscreen plus remote monitoring through the app / cloud platform, with automatic alarms for anomalies and support for networked cluster management of multiple cabins;
- Modular rapid deployment: factory-prefabricated and plug and play with no civil construction work required; the complete cabin can be lifted and transported, enabling rapid replication and capacity expansion.
IV. Main Technical Parameters
| Parameter | Specification |
|---|---|
| Product model | HVC-40 (Smart Morel Cultivation Cabin) |
| Cabin dimensions | 12192 × 2438 × 2896 mm (40 ft high cube class) |
| Cabin material | High-density insulated sandwich panel (PU polyurethane insulation layer) |
| Effective cultivation area | Approx. 120–150 m² (substrate bed cultivation) |
| Cultivation method | Soil substrate bed · casing soil fruiting cultivation |
| Temperature control range | 5–30 ℃ (accuracy ±0.5 ℃) |
| Humidity control range | 60–98% RH (accuracy ±3%) |
| Light management | Dark / low-light dual mode, adjustable 0–200 lux |
| CO₂ concentration control | 600–1500 ppm automatic enrichment |
| Substrate pH range | 6.5–8.0 (automatic online monitoring) |
| Humidification system | Micro-mist spraying + ultrasonic humidification dual system |
| Ventilation system | Fresh-air exchange + in-cabin circulation dual mode |
| Control system | PLC + 10-inch touchscreen + app remote monitoring |
| Power supply | 380 V / 50 Hz three-phase five-wire |
| Rated power | Approx. 20–30 kW |
| Daily power consumption | Approx. 50–100 kWh (varies with season and environment) |
| Reference production cycle | Mycelium culture 30–60 days + fruiting 20–40 days |
| Ambient operating temperature | -20 ℃ – 45 ℃ |
Note: the specifications above refer to the standard configuration and can be customized according to cultivation scale and strain characteristics.
V. Morel Growth Stages and Environmental Recommendations
5.1 Cultivation Process
Substrate preparation and sterilization → spawn inoculation and mycelium culture → casing soil application and primordium induction → fruiting management and harvest → substrate rotation and cabin disinfection. The entire process is executed automatically by the control system according to preset environmental curves.
5.2 Environmental Recommendations by Growth Stage (programmable and preset via the control system)
| Growth stage | Substrate temperature | Air humidity | Light | CO₂ concentration |
|---|---|---|---|---|
| Mycelium culture stage | 20–25 ℃ | 70–80% RH | Dark (0 lux) | 800–1200 ppm |
| Primordium formation stage | 15–20 ℃ | 85–95% RH | Low light (50–100 lux) | 600–1000 ppm |
| Fruiting and harvest stage | 12–20 ℃ | 85–95% RH | Diffuse low light (100–200 lux) | 600–900 ppm |
VI. Application Scenarios
- Industrial production of premium edible fungi: year-round stable morel cultivation free from the seasonal constraints of open-field growing;
- Research and breeding: a platform for morel strain selection, nutritional physiology and high-yield cultivation technology research;
- Premium food supply chain: direct-supply bases for supermarkets, restaurants and e-commerce, ensuring stable supply and consistent quality;
- Specialty agricultural parks: a demonstration unit for protected agriculture upgrading and rural revitalization projects;
- Fresh supply in special environments: premium mushroom supply solutions for plateaus, inland areas, islands and other non-traditional production regions.
Henvic · Smart Plant Factory Solutions
The parameters stated in this product introduction are reference values for the standard configuration; actual specifications are subject to the technical agreement confirmed by both parties. Customized solutions are available on request.
