大型知能菌類培養カプセル
I. Product Overview

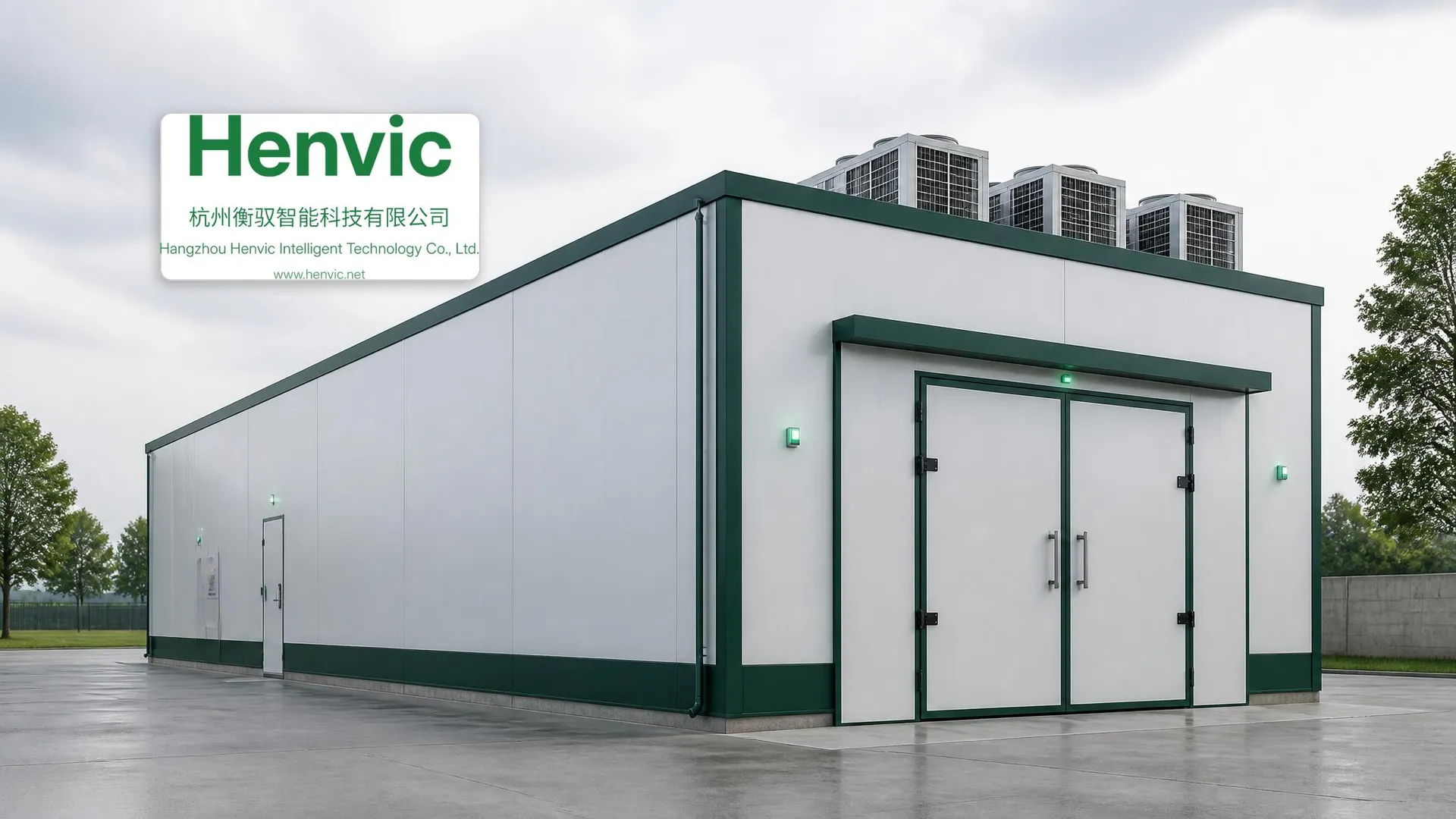

The Large-Scale Smart Mushroom Cultivation Cabin is a large modular cultivation system developed by Hangzhou Henvic Intelligent Technology Co., Ltd. for the industrial production of edible fungi. The cabin body is prefabricated from polyurethane sandwich insulation panels, offering a larger cultivation space and more flexible configuration options than conventional container-based cultivation units. It can operate as a single independent cabin, or multiple cabins can be connected in parallel to build a large-scale mushroom production base.
The cabin integrates multi-tier vertical cultivation racks, full-spectrum LED grow lights, variable-frequency constant temperature and humidity air conditioning, high-pressure misting humidification, fresh air exchange and an IoT remote monitoring system, providing a constant growing environment for edible fungi throughout the year. This enables 365-day uninterrupted production and significantly reduces labor and energy costs.
II. Core Advantages
- Larger space: effective cultivation area of 200 – 300 m² per cabin, delivering output equivalent to a conventional 400 – 500 m² mushroom house
- Stable environment: fully automatic closed-loop control of temperature, humidity, CO₂ and lighting for reliable year-round fruiting
- Intelligent management: remote monitoring and alarms via the IoT platform — manage the entire mushroom farm from a single phone
- Energy saving and environmental protection: polyurethane insulation plus variable-frequency equipment, with optional solar photovoltaic power supply
- Flexible expansion: modular design supporting site-specific customized dimensions and capacity expansion through parallel connection of multiple cabins
- Clean and safe: food-grade stainless steel cultivation racks and a sealed cabin body that effectively block pests and diseases
III. Technical Parameters
| Technical parameter | Specification |
|---|---|
| Product name | Large-Scale Smart Mushroom Cultivation Cabin (industrial edible fungus production unit) |
| Structure type | Modular prefabricated insulation panel assembly; supports parallel connection of multiple cabins and site-specific customized dimensions |
| Cabin dimensions | Customized (length ≥ 12 m, width ≥ 3 m, height ≥ 3 m) |
| Effective cultivation area | 200 – 300 m² per cabin (expandable) |
| Cultivation racks | Food-grade stainless steel vertical cultivation racks, 6 – 8 tiers |
| Temperature control range | 4 – 30°C (variable-frequency air conditioning unit + fresh air system, accuracy ±1°C) |
| Humidity control | 60 – 95% RH (automatic humidification via ultrasonic / high-pressure misting, accuracy ±3% RH) |
| CO₂ control | 500 – 2000 ppm, automatically regulated by fresh air exchange |
| Lighting system | Full-spectrum LED supplementary lighting with programmable dimming across multiple time periods |
| Control system | IoT remote monitoring platform (real-time monitoring of temperature / humidity / CO₂ / lighting / equipment status) |
| Power supply | AC 380V/50Hz three-phase, optional solar photovoltaic power supply |
| Insulation performance | Polyurethane sandwich insulation panels, thermal conductivity ≤ 0.024 W/(m·K) |
| Suitable varieties | Oyster mushroom, shiitake, king oyster mushroom, enoki mushroom, lion's mane mushroom, morel and others |
| Capacity reference | Output of a single cabin is equivalent to a conventional 400 – 500 m² mushroom house |
IV. System Composition
- Cabin system: modular assembly of polyurethane sandwich insulation panels with sealed insulated doors and observation windows

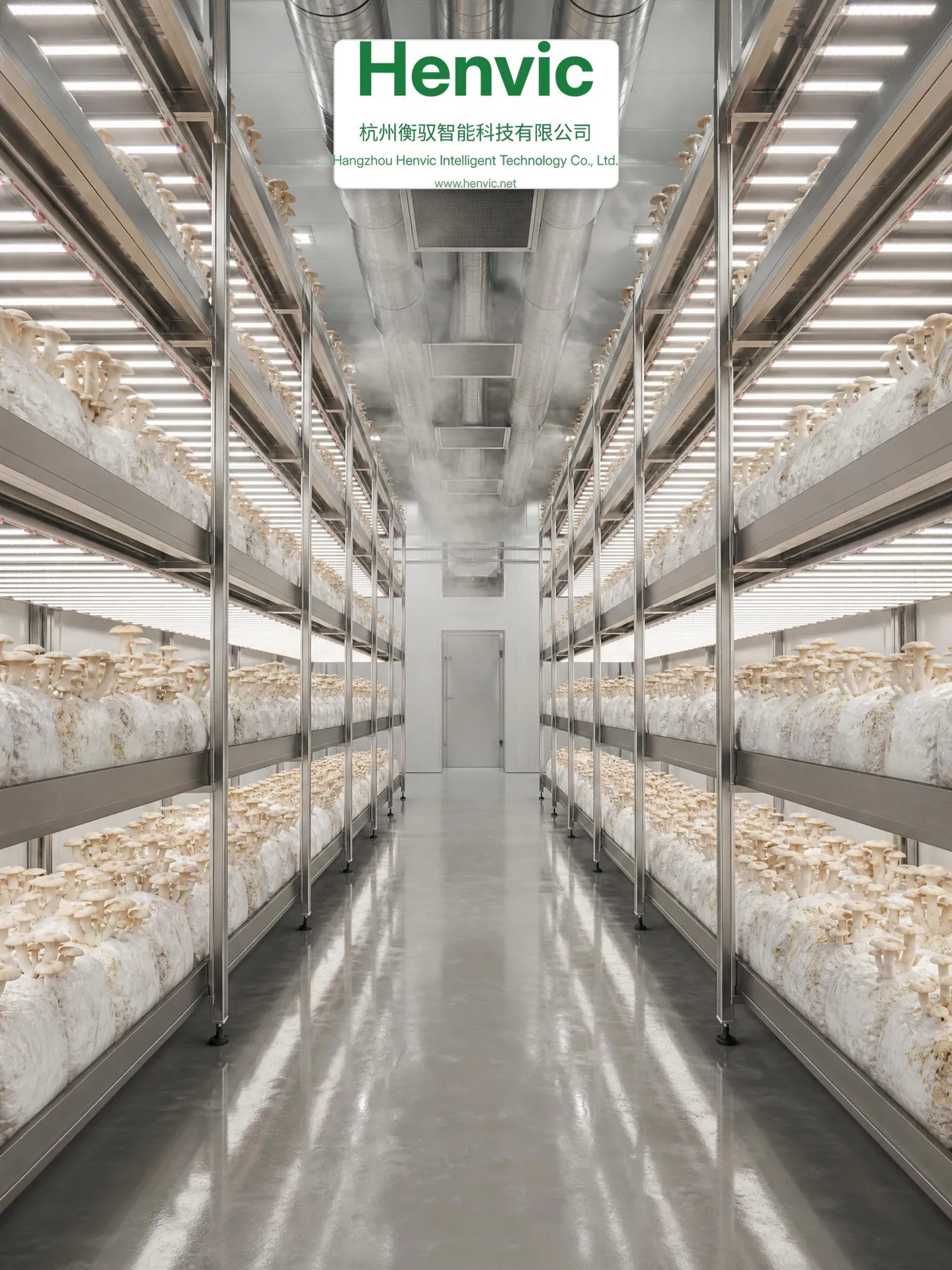

- Cultivation system: multi-tier stainless steel vertical cultivation racks with adjustable tier spacing, compatible with both grow bags and grow bottles
- Environmental system: variable-frequency air conditioning, fresh air exchange, high-pressure misting humidification and full-spectrum LED supplementary lighting

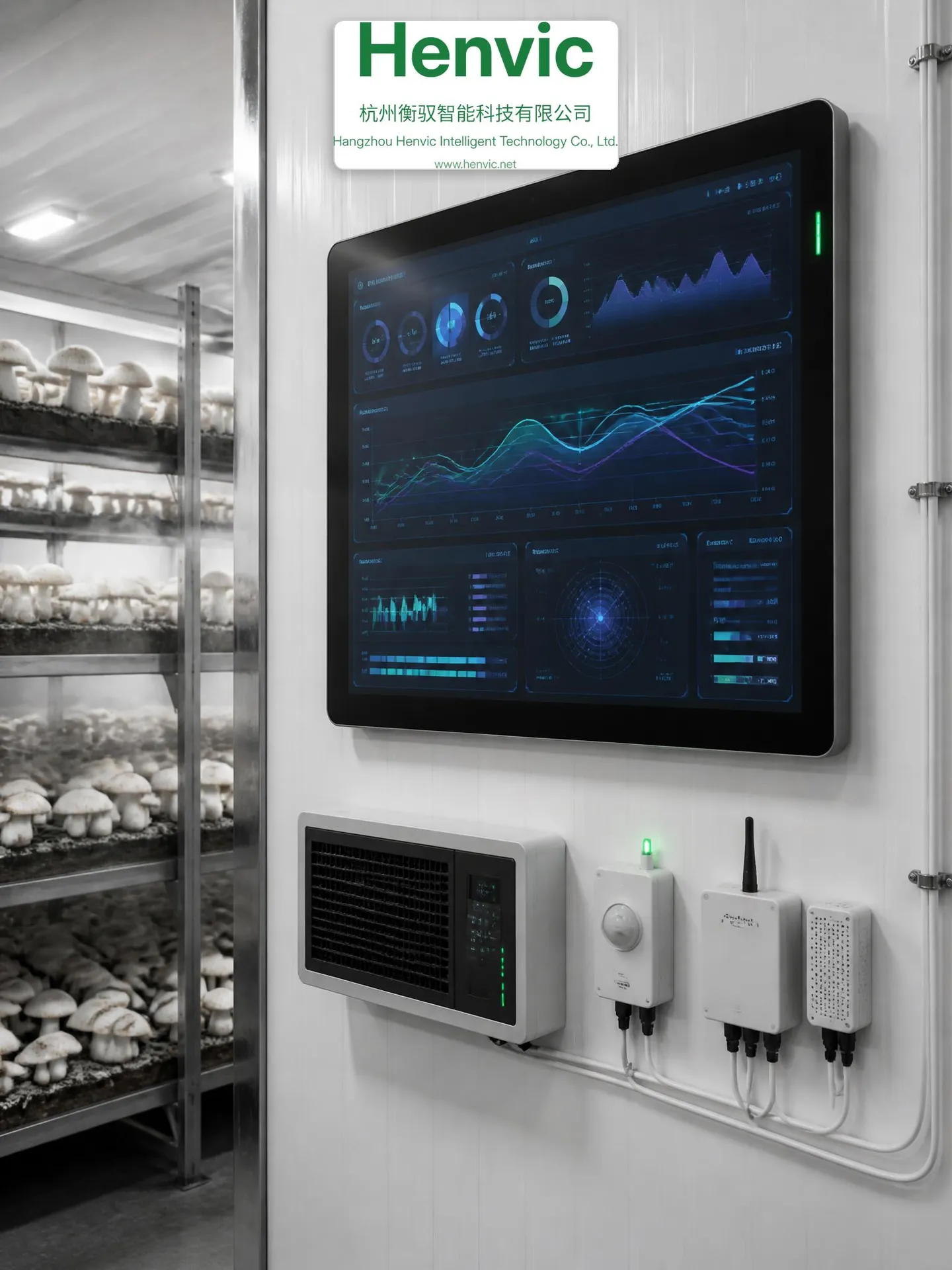

- Control system: touch-screen human-machine interface + IoT remote monitoring (temperature / humidity / CO₂ / lighting / equipment status)
- Auxiliary systems: UV sterilization, water supply and drainage, intelligent power management (solar power optional)
V. Cultivation Guidelines and Recommended Environment
The cabin environment can be flexibly configured according to the fungal species and growth stage. The recommended parameters for each stage are as follows:
| Growth stage | Temperature | Humidity | CO₂ | Light |
|---|---|---|---|---|
| Spawn running / mycelium incubation | 22 – 25°C | 60 – 70% | 1500 – 3000 ppm | Dark |
| Primordium differentiation | 15 – 18°C | 85 – 95% | 800 – 1000 ppm | Weak diffused light |
| Fruiting stage | 12 – 20°C (depending on variety) | 85 – 95% | ≤ 1000 ppm | LED supplementary lighting 8 – 12 h/day |
| Harvest stage | 8 – 15°C | 80 – 85% | Increased ventilation | Soft light |
VI. Application Scenarios
- Industrial edible fungus production bases (oyster mushroom, shiitake, king oyster mushroom, enoki mushroom, lion's mane mushroom, morel, etc.)
- Modern agricultural industrial parks and controlled-environment agriculture demonstration projects
- In-house raw material bases for prepared-meal and mushroom deep-processing enterprises
- Stable production solutions for high-altitude, cold, arid and other regions unsuitable for conventional mushroom cultivation
- Edible fungus breeding and cultivation trial platforms for research institutes
VII. About Us
Hangzhou Henvic Intelligent Technology Co., Ltd. (Henvic) specializes in intelligent agricultural equipment and controlled-environment agriculture, providing integrated services from scheme design and equipment manufacturing through to installation, operation and maintenance.
Company name (CN): Hangzhou Henvic Intelligent Technology Co., Ltd.
Company name (EN): Hangzhou Henvic Intelligent Technology Co., Ltd.
Official website: www.henvic.net
